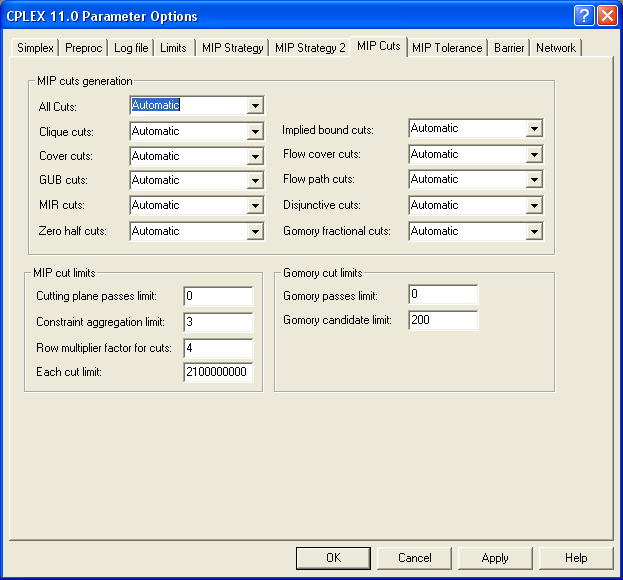

Figure 4.48: The CPLEX MIP Cuts Options Dialog Box
You can change the MIP Cuts options for CPLEX by choosing CPLEX parameters from the Options menu and then pressing the MIP Cuts tab. This will display the dialog box shown below:
Figure 4.48: The CPLEX MIP Cuts Options Dialog Box
| Option Name | MPL Name | Solver Param | ParamNr | Type | Default | Min | Max |
|---|---|---|---|---|---|---|---|
| Clique Cuts | MipCliqueStrategy | Cliques | 2003 | list | 0 | -1 | 2 |
| Cover Cuts | MipCoverCutsStrategy | Covers | 2005 | list | 0 | -1 | 2 |
| GUB Cuts | MipGubCutsInd | GUBCovers | 2044 | list | 0 | -1 | 2 |
| MIR cuts | MipMirCuts | MIRCuts | 2052 | list | 0 | -1 | 2 |
| Implied bound Cuts | MipImpliedBoundCutsInd | ImplBd | 2041 | list | 0 | -1 | 2 |
| Flow path cuts | MipFlowPaths | FlowPaths | 2051 | list | 0 | -1 | 2 |
| Disjunctive cuts | MipDisjunctiveCuts | DisjCuts | 2053 | list | 0 | -1 | 3 |
| Gomory fractional Cuts | MipFracStrategy | FracCuts | 2049 | list | 0 | -1 | 2 |
| Cutting plane passes limit | MipCutPasses | CutPass | 2056 | int | 0 | -1 | MAXINT |
| Constraint aggregation limit | MipAggrCutLimit | AggCutLim | 2054 | int | 3 | 0 | MAXINT |
| Row multiplier factor for cuts | MipCutsMultiplierFactor | CutsFactor | real | 4 | 0 | MAXREAL | |
| Gomory passes limit | MipFracPassLimit | FracPass | 2050 | int | 0 | 0 | MAXINT |
| Gomory candidate limit | MipFracCandLimit | FracCand | 2048 | int | 200 | 0 | MAXINT |
Determines whether or not to generate clique cuts for the problem and how aggressively.
| Do not generate cuts (-1) | Do not generate clique cuts. |
| Automatic (0) | Generate clique cuts only if it seems to be helping. |
| Moderately (1) | Generate clique cuts moderately. |
| Aggressively (2) | Generate clique cuts aggressively. |
Determines whether or not to generate cover cuts for the problem and how aggressively.
| Do not generate cuts (-1) | Do not generate cover cuts. |
| Automatic (0) | Generate Cover cuts only if it seems to be helping. |
| Moderately (1) | Generate cover cuts moderately. |
| Aggressively (2) | Generate cover cuts aggressively. |
Determines whether or not to generate GUB cuts for the problem and how aggressively.
| Do not generate cuts (-1) | Do not generate GUB cuts. |
| Automatic (0) | Generate GUB cuts only if it seems to be helping. |
| Moderatley (1) | Generate GUB cuts moderately. |
| Aggressively (2) | Generate GUB cuts aggressively. |
Determines whether or not mixed integer rounding (MIR) cuts should be generated for the problem and how aggressively.
| Do not generate cuts (-1) | Do not generate MIR cuts. |
| Automatic (0) | Generate MIR cuts only if it seems to be helping. |
| Moderately (1) | Generate MIR cuts moderately. |
| Aggressively (2) | Generate MIR cuts aggressively. |
Determines whether or not to generate implied bound cuts for the problem and how aggressively.
| Do not generate cuts (-1) | Do not generate bound cuts. |
| Automatic (0) | Generate bound should continue only if it seems to be helping. |
| Moderately (1) | Generate implied bound cuts moderately. |
| Aggressively (2) | Generate implied bound cuts aggressively. |
Determines whether or not to generate flow path cuts for the problem and how aggressively.
| Do not generate cuts (-1) | Do not generate flow path cuts. |
| Automatic (0) | Generate flow path cuts only if it seems to be helping |
| Moderately (1) | Generate flow path cuts moderately. |
| Aggressively (2) | Generate flow path cuts aggressively. |
Determines whether or not to generate disjunctive cuts for the problem and how aggressively.
| Do not generate cuts (-1) | Do not generate disjunctive cuts. |
| Automatic (0) | Generate disjunctive cuts only if it seems to be helping |
| Moderately (1) | Generate disjunctive cuts moderately. |
| Aggressively (2) | Generate disjunctive cuts aggressively. |
| Very Aggressively (3) | Generate disjunctive cuts very aggressively. |
Determines whether or not to generate gomory fractional cuts for the problem and how aggressively.
| Do not generate cuts (-1) | |
| Automatic (0) | Generate gomory fractional cuts only if it seems to be helping. |
| Moderate (1) | For models requiring some fine tuning of performance. |
| Aggressive (2) | For models requiring some fine tuning of performance. |
Sets the upper limit on the number of passes CPLEX performs when generating cutting planes on a MIP model. Positive values give number of passes to perform. And zero means Automatic (default).
Limits the number of constraints that can be aggregated for generating flow cover and mixed integer rounding cuts. For most purposes the default of 3 will be satisfactory.
Limits the number of cuts that can be added. The number of rows in the problem with cuts added is limited to this factor value times the original number of rows. If the problem is presolved, the original number of rows is that from the presolved problem. A factor of 1.0 o less means that no cuts will be generated. Because cuts can be added and removed during the course of optimization, factor may not correspond directly to the number of cuts seen during the node log or in the summary table at the end of optimization.
Limits the number of passes for generating Gomory fractional cuts. At the default setting of 0, CPLEX decides. The parameter is ignored if the Gomory fractional cut parameter is is set to a nonzero value.
Limits the number of candidate variables for generating Gomory fractional cuts. The default is 200.
